Visualization Overview

CRESSENT provides a comprehensive suite of visualization tools designed to create publication-ready figures for genomic and phylogenetic analysis. The visualization modules transform complex analytical results into clear, interpretable graphics suitable for scientific publications and presentations.

Overview

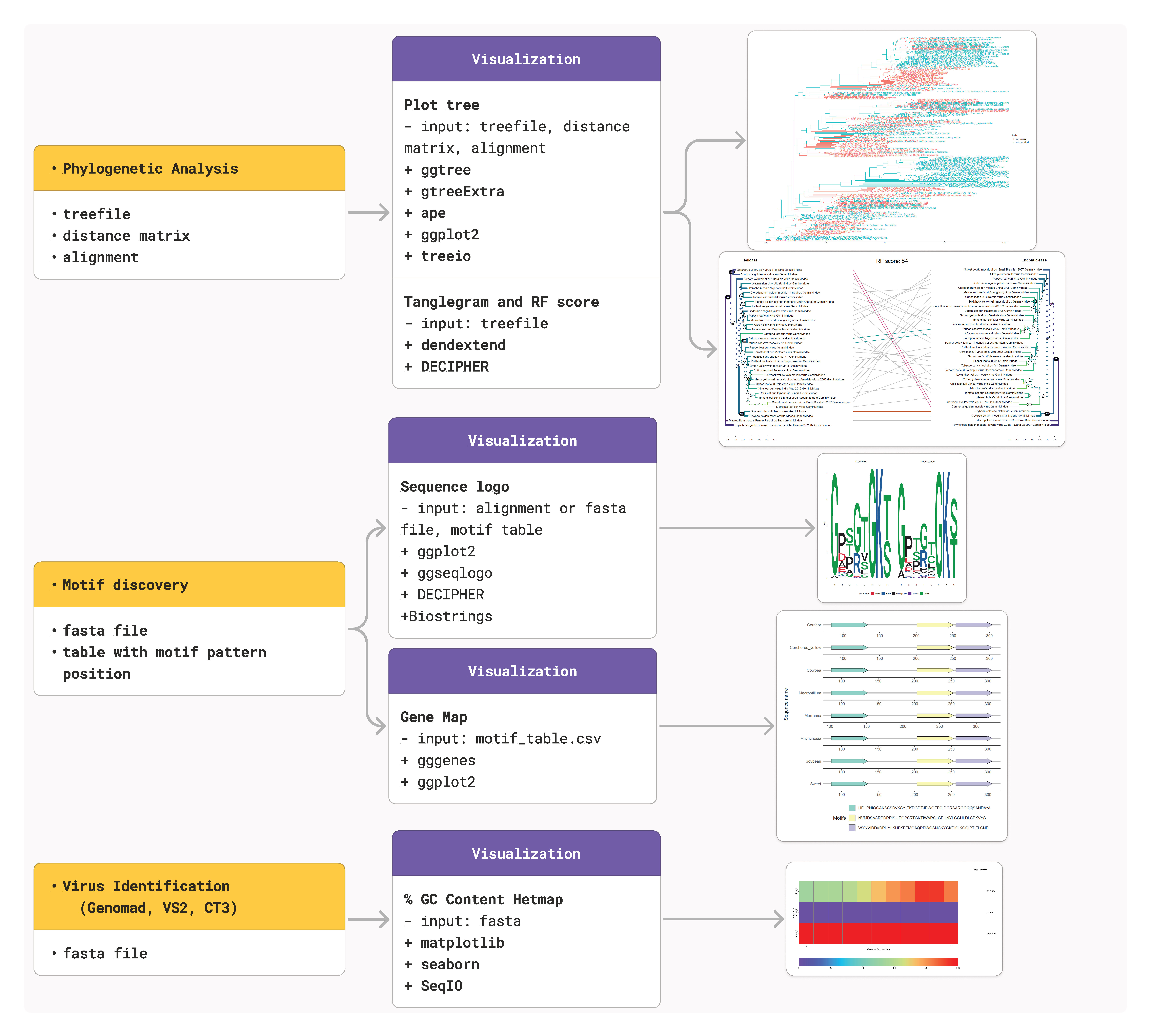

The visualization suite includes four primary modules:

Sequence logos for motif visualization
Phylogenetic trees with advanced customization options
Tanglegrams for comparative phylogenetic analysis
Motif mapping for genome-wide pattern distribution

Sequence Logo Generation

Purpose

Create information-rich sequence logos that display motif conservation patterns, nucleotide preferences, and positional information content.

Basic Usage

# From FASTA sequences
cressent seq_logo -i aligned_sequences.fasta \
                 -o visualization/ \
                 -n motif_logo.pdf \
                 --plot_title "CRESS Nonanucleotide"

# From motif table
cressent seq_logo -tb motif_positions.txt \
                 -o visualization/ \
                 -n discovered_motifs.pdf \
                 --width 12 \
                 --height 6

Key Features

Multi-row support for long sequences (automatic wrapping)
Grouped analysis by metadata categories
Information content or probability-based scaling
Publication-ready output with customizable dimensions

Advanced Customization

cressent seq_logo -tb motif_table.txt \
                 --plot_title "Viral Family Comparison" \
                 --split \
                 --metadata family_data.csv \
                 --group_label "virus_family" \
                 --ncol 3 \
                 --positions_per_row 40 \
                 --method "bits" \
                 --width 15 \
                 --height 10 \
                 -o grouped_logos/

Parameters

Parameter	Description	Default
`--plot_title`	Logo title	sequence_logo
`--width/--height`	Dimensions in inches	10/10
`--method`	Scaling method (bits/prob)	prob
`--positions_per_row`	Positions before wrapping	50
`--max_positions_single_row`	Auto-wrap threshold	100
`--split`	Group by metadata	False
`--ncol`	Columns for grouped display	Required with –split

Output Examples

Single sequence logo:

Standard logo for conserved motifs
Information content visualization
Multi-row display for long sequences

Grouped logos:

Family-specific motif patterns
Comparative analysis across groups
Statistical significance indicators

Phylogenetic Tree Visualization

Purpose

Generate sophisticated phylogenetic tree visualizations with metadata integration, alignment display, and publication-quality formatting.

Basic Usage

# Simple tree plot
cressent plot_tree -t phylogeny.treefile \
                  -o tree_output/ \
                  --plot_name tree_analysis.pdf

# Tree with metadata
cressent plot_tree -t phylogeny.treefile \
                  --metadata_1 sequence_info.csv \
                  --metadata_2 name_mapping.tsv \
                  -o tree_output/ \
                  --color TRUE \
                  --tip_label "family"

Layout Options

Multiple tree layouts for different analytical needs:

# Circular tree
cressent plot_tree -t tree.treefile \
                  --layout circular \
                  --open_angle 90 \
                  --offset 0.2 \
                  -o circular_trees/

# Rectangular tree with alignment
cressent plot_tree -t tree.treefile \
                  --layout rectangular \
                  --alignment sequences.fasta \
                  --metadata_1 annotations.csv \
                  --color TRUE \
                  -o aligned_trees/

# Unrooted network
cressent plot_tree -t tree.treefile \
                  --layout unrooted \
                  --branch_length "branch.length" \
                  --fig_width 12 \
                  --fig_height 12 \
                  -o network_trees/

Distance Matrix Trees

Generate trees directly from distance matrices:

cressent plot_tree --dist_matrix sequences.mldist \
                  --metadata_1 annotations.csv \
                  --layout circular \
                  --color TRUE \
                  --tip_label "species" \
                  -o distance_trees/

Advanced Features

Feature	Description	Usage
Metadata integration	Color coding by groups	`--metadata_1/2` + `--color TRUE`
Alignment display	MSA alongside tree	`--alignment sequences.fasta`
Custom labeling	Flexible tip labels	`--tip_label "column_name"`
Branch scaling	Different length metrics	`--branch_length "method"`
Size control	Publication dimensions	`--fig_width/height`

Parameters

Parameter	Description	Default
`--layout`	Tree layout style	rectangular
`--branch_length`	Branch length method	branch.length
`--open_angle`	Circular tree opening	0
`--offset`	Tip label offset	0.14
`--tip_label`	Metadata column for tips	family
`--color`	Color by groups	TRUE
`--plot_tips`	Show tip labels	TRUE

Tanglegram Analysis

Purpose

Compare two phylogenetic trees through tanglegram visualization, highlighting topological differences and calculating Robinson-Foulds distances.

Basic Usage

cressent tanglegram --tree1 nucleotide_tree.treefile \
                   --tree2 protein_tree.treefile \
                   --label1 "Nucleotide Tree" \
                   --label2 "Protein Tree" \
                   -o tanglegram_output/ \
                   --name_tanglegram comparison.pdf

Features

Automatic tree comparison with Robinson-Foulds scoring
Edge highlighting for topological differences
Branch color coding for common subtrees
Dynamic sizing based on tree complexity
Publication formatting with customizable dimensions

Advanced Analysis

cressent tanglegram --tree1 rep_phylogeny.treefile \
                   --tree2 cap_phylogeny.treefile \
                   --label1 "Rep Protein Tree" \
                   --label2 "Capsid Protein Tree" \
                   --width 25 \
                   --height 15 \
                   --lab_cex 1.2 \
                   -o comparative_analysis/ \
                   --name_tanglegram rep_vs_cap.pdf

Parameters

Parameter	Description	Default
`--tree1/2`	Input tree files	Required
`--label1/2`	Tree labels	Tree 1/Tree 2
`--width/height`	Figure dimensions	20/11
`--lab_cex`	Label size	1.5
`--name_tanglegram`	Output filename	tanglegram.pdf

Output Features

RF score display quantifying tree distance
Common subtree highlighting in matching colors
Distinctive edge emphasis for conflicting relationships
Automatic layout optimization for clarity

Motif Mapping Visualization

Purpose

Create genome-wide visualizations showing motif distribution patterns, functional annotations, and structural relationships.

Input Compatibility

Supports multiple input formats with automatic detection:

# Prosite results
cressent motif_map_viz -f scanprosite_results.csv \
                      -o motif_maps/ \
                      --format prosite

# MEME motif table
cressent motif_map_viz -f motif_table.csv \
                      -o motif_maps/ \
                      --format motif_table

# Auto-detection
cressent motif_map_viz -f results.csv \
                      -o motif_maps/ \
                      --format auto

Visualization Types

Linear genome maps:

Sequence-by-sequence motif distribution
Position-accurate mapping
Color-coded motif types
Scalable for multiple sequences

Density plots:

Motif frequency analysis
Position distribution patterns
Comparative statistics
Multi-panel layouts

Heatmaps:

Presence/absence matrices
Quantitative motif counts
Hierarchical clustering options
Interactive color scaling

Detailed genome maps:

High-resolution motif positioning
Functional annotation integration
Publication-ready formatting
Comprehensive legends

Example Workflow

# Step 1: Generate motif data
cressent motif_discovery -i sequences.fasta \
                        -o motif_analysis/ \
                        --scanprosite

# Step 2: Create comprehensive visualizations
cressent motif_map_viz -f motif_analysis/motif_table.csv \
                      -o visualization/ \
                      --format auto

# Step 3: Generate Prosite visualizations
cressent motif_map_viz -f motif_analysis/scanprosite_results.csv \
                      -o visualization/ \
                      --format prosite

Output Gallery

Linear maps (genome_map_linear_*.png):

Horizontal sequence representations
Motif positions as colored rectangles
Coordinate systems with position labels
Multiple sequences in parallel tracks

Density analysis (motif_density_*.png):

Bar plots of motif counts per sequence
Histograms of positional distributions
Statistical summaries and trends
Comparative analysis panels

Heatmaps (motif_heatmap_*.png):

Matrix representations of motif presence
Color intensity indicating abundance
Clustering dendrograms (optional)
Annotation tracks for metadata

Detailed maps (detailed_genome_map_*.png):

High-resolution sequence tracks
Precise coordinate information
Functional annotation overlays
Professional publication formatting

Integrated Visualization Workflows

Complete Analysis Pipeline

# 1. Generate sequence data
cressent motif -i sequences.fasta \
               -p "TAGTATTAC" \
               --generate-logo \
               --plot-title "Nonanucleotide Motif" \
               -o complete_analysis/

# 2. Build phylogenetic trees
cressent build_tree -i aligned_sequences.fasta \
                   -o complete_analysis/ \
                   -B 1000

cressent plot_tree -t complete_analysis/*.treefile \
                  --metadata_1 sequence_metadata.csv \
                  --layout circular \
                  --color TRUE \
                  -o complete_analysis/

# 3. Comparative phylogenetics
cressent tanglegram --tree1 rep_tree.treefile \
                   --tree2 cap_tree.treefile \
                   --label1 "Rep Proteins" \
                   --label2 "Capsid Proteins" \
                   -o complete_analysis/

# 4. Motif distribution analysis
cressent motif_map_viz -f complete_analysis/motif_table.csv \
                      -o complete_analysis/

Publication-Ready Output

# High-quality figures for publication
cressent seq_logo -tb motif_positions.txt \
                 --plot_title "Conserved Nonanucleotide" \
                 --method "bits" \
                 --width 8 \
                 --height 4 \
                 -n Figure_1A.pdf \
                 -o publication_figures/

cressent plot_tree -t phylogeny.treefile \
                  --metadata_1 annotations.csv \
                  --layout rectangular \
                  --alignment sequences.fasta \
                  --fig_width 10 \
                  --fig_height 8 \
                  --plot_name Figure_2.pdf \
                  -o publication_figures/

cressent tanglegram --tree1 tree1.treefile \
                   --tree2 tree2.treefile \
                   --width 12 \
                   --height 8 \
                   --name_tanglegram Figure_3.pdf \
                   -o publication_figures/

Best Practices

Design Principles

Consistency in color schemes and styling
Clarity in labeling and legends
Scalability for different output formats
Accessibility with colorblind-friendly palettes

Technical Considerations

Resolution appropriate for intended use
File formats suitable for target applications
Size optimization for web or print
Reproducibility through parameter documentation

Quality Control

Preview outputs before final generation
Validate data integrity in visualizations
Test different parameter combinations
Document successful parameter sets

Troubleshooting

Common Issues

R package dependencies:

Ensure all required packages are installed
Check version compatibility
Update packages if necessary

Large dataset visualization:

Reduce data complexity where possible
Increase memory allocation
Use sampling for preview purposes

Color scheme problems:

Test with colorblind simulation tools
Use established palettes (RColorBrewer)
Maintain sufficient contrast

Performance Optimization

Memory management:

Process large datasets in chunks
Clear R workspace between analyses
Monitor system resources

Rendering speed:

Use appropriate resolution settings
Optimize data structures
Consider vector vs. raster formats

Output Validation

Quality checks:

Verify data accuracy in plots
Check scaling and proportions
Validate legends and labels
Test across different viewers/platforms
